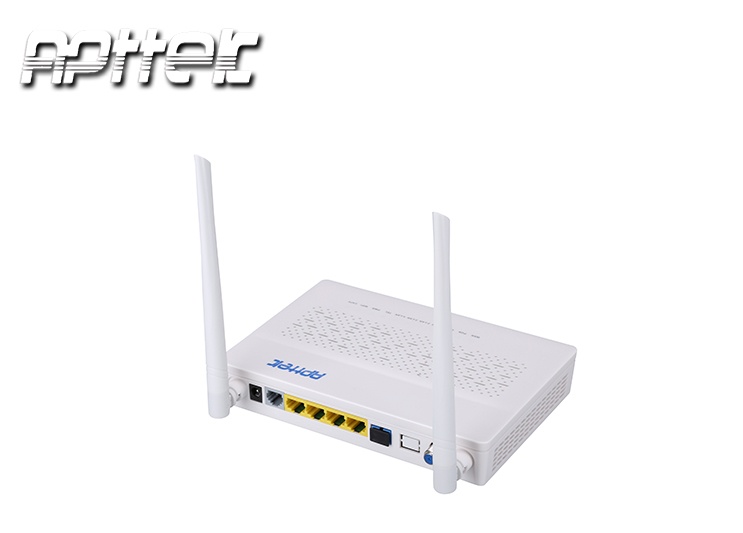

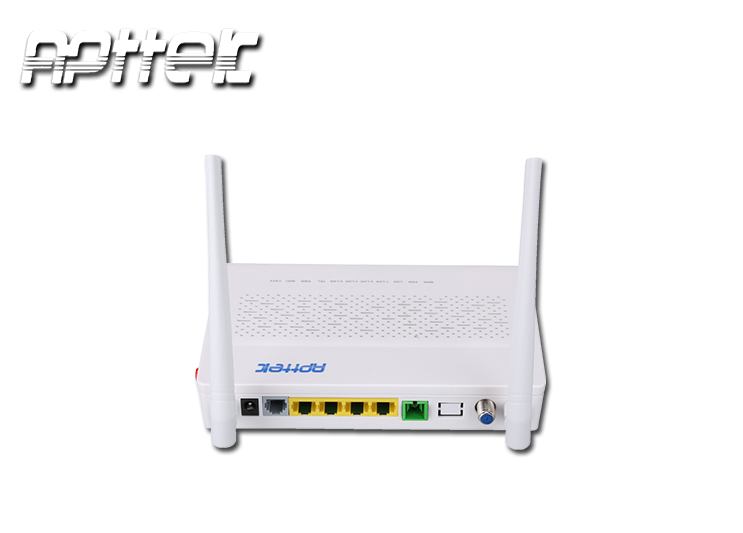

1GE+3FE+WIFI+CATV GPON/EPON ONU, View ONU

1GE+3FE+2.4GWIFI+CATV Single fiber+VOIP is designed to meet the multi-service needs of fixed network operators or cable operators. It is widely used in FTTO (office), FTTD (desk), FTTH (home) broadband access, video surveillance and other requirements. It is based on mature Gigabit XPON technology. it has high stable performance, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with XPON technical requirement, such as IEEE802.3ah technica standards.

Adjustable to GPON

1. Comply fully with ITU-G.984.1/2/3/4 standard and G.987.3 protocol
2. Support bidirectional FEC and RS(255,239) FEC CODEC

3. Support 32 TCONT and 256 GEMPORT

4. Support AES128 decryption function of G.984 standard

5. Support SBA and DBA dynamically broadband allocation

6. Support the PLOAM function of G.984 standard

7. Support dying-gasp check and report

8. Support synchronous Ethernet

9. Support the rogue ONU alarm function

10. Support multiple VLAN function

11. Operation mode: SFU or HGU option

12. Support TR069, NAT, DMZ, DNS features

13. Support IPV, PPPOE, DHCP, and Static IP configuration for WAN interface

14. Support IP, MAC Filtering, Firewall functionality in routed mode

15. Good interworking with the OLT from different manufacturers ,
such as Huawei, ZTE, cortina , etc.

Ajustable to EPON

1. Comply fully with IEEE802.3ah standard and CTC EPON device technology requirement
2. Support bidirectional FEC
3. Support downlink triple churning
4. Support AES128 decryption function ONU discovery and registration process implemented
by Pure hardware
5. Support the report of the CTC requirement Support Dying-Gasp check and report Support
OAM remote management
6. Support VLAN function Operation mode:SFU or HGU option
7. Support TR069,NAT,DMZ,DNS features
8. Support IPV,PPPOE,DHCP and Static IP conguration for WAN interface
9. Support IP,MAC Filtering,Firewall Functionality in routed mode
10. Good interworking with the OLT from different manufacturers,such as Broadcom,ZTE,Cortina etc
